Aerogel Oryza Sil 650

Aerogel

Oryza Sil 650 Aerogel Blanket

Flexible Thermal Insulation for Extreme Conditions [-196°C to +650°C]

Oryza Sil 650 is a high-performance aerogel blanket made from nanoporous aerogel and reinforcing fibres. Ideal for hot and cryogenic service, it offers low thermal conductivity (0.010–0.020 W/m·K) and is widely used in pipelines, petrochemicals, aerospace, marine, and transportation.

Technologies Developed

Clinical Decisions

Top Global Providers

Key Features & Benefits

Low dust emission

Low dust emission for safer handling

Excellent thermal performance

Excellent thermal performance with slim thickness for space efficiency.

Fire resistance (Grade A1)

Fire resistance (Grade A1) and non-flammable.

Extremely hydrophobic & breathable

Extremely hydrophobic and breathable, mitigating corrosion under insulation (CUI).

Soft and easy to install

Soft and easy to install on small-diameter piping.

Durable, stable, and environmentally friendly

Durable, stable, and environmentally friendly.

Technical Specifications

Nominal Thickness

3 mm, 5 mm, 10 mm, 20 mm

Density

165 kg/m³

Fire Rating

A1 (BS 476 Part 4)

Thermal Conductivity

Tested to EN 12667 and ASTM C177

Other Tests

Water absorption (ASTM C1763-B), compression (ASTM C165), flexibility (ASTM C1101), and more

Acoustic Performance

ISO 15665 for pipes, valves, and flanges

Technologies Developed

Clinical Decisions

Top Global Providers

Applications

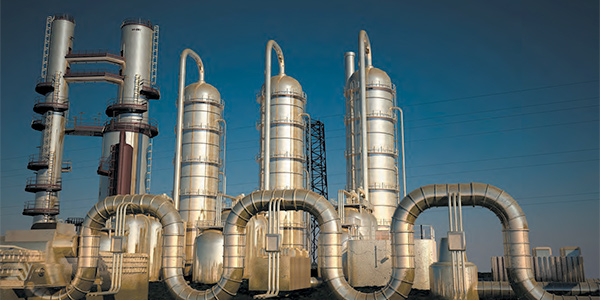

Oil & Gas Refineries

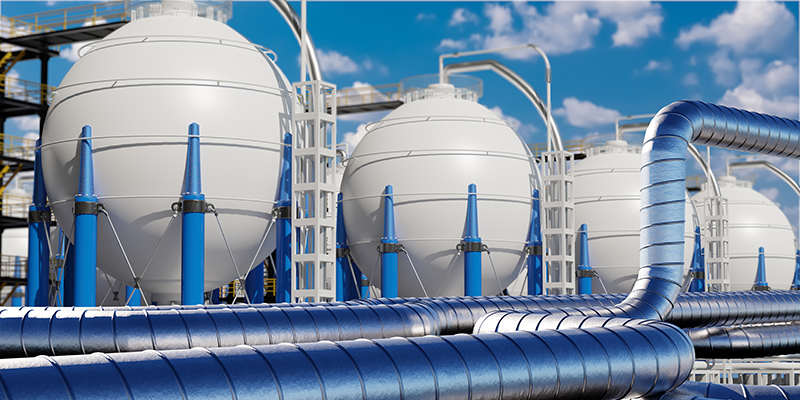

Cryogenic Insulation

Industrial Pipelines

Home Appliances and Construction

AEROGEL

Thermal Conductivity Comparison

Temperature (°C)	Oryza Sil 650 (W/m·K)	Other Premium Aerogels	Cellular Glass	Mineral Wool	AES Wool
-196	0.010	Varies	Higher	Higher	Higher
0	0.015	Varies	Higher	Higher	Higher
650	0.020	Varies	Higher	Higher	Higher
